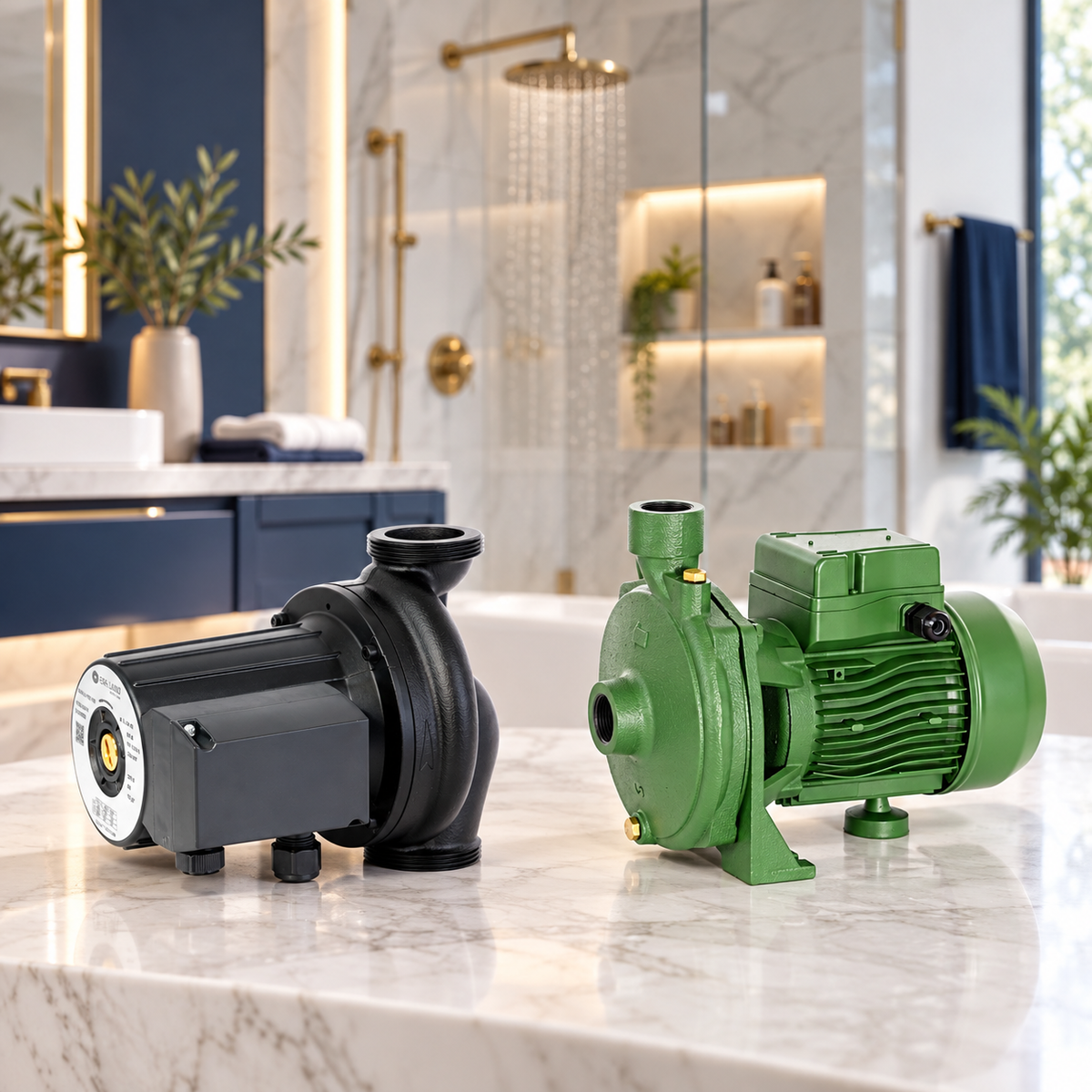

Make your home’s hot-water system work around your daily routine. Sea-Land circulation pumps keep water moving through compatible systems, supporting convenient hot-water circulation when correctly installed. Choose the black CKR inline option with an automatic thermostat or the green KX101M option with a control panel.
Choose your pump
| Option | What you receive | Price |
|---|---|---|
| 0.5 HP option — CKR inline series | Black inline circulation pump with C.a.e.m. TU 10 B automatic immersion thermostat — Made in Italy | LE 12,750 |
| 1 HP — KX101M | Green centrifugal circulation pump with control panel | LE 20,000 |

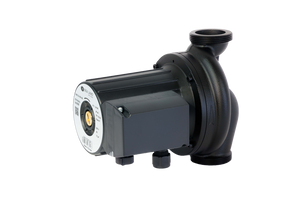

Black CKR inline pump

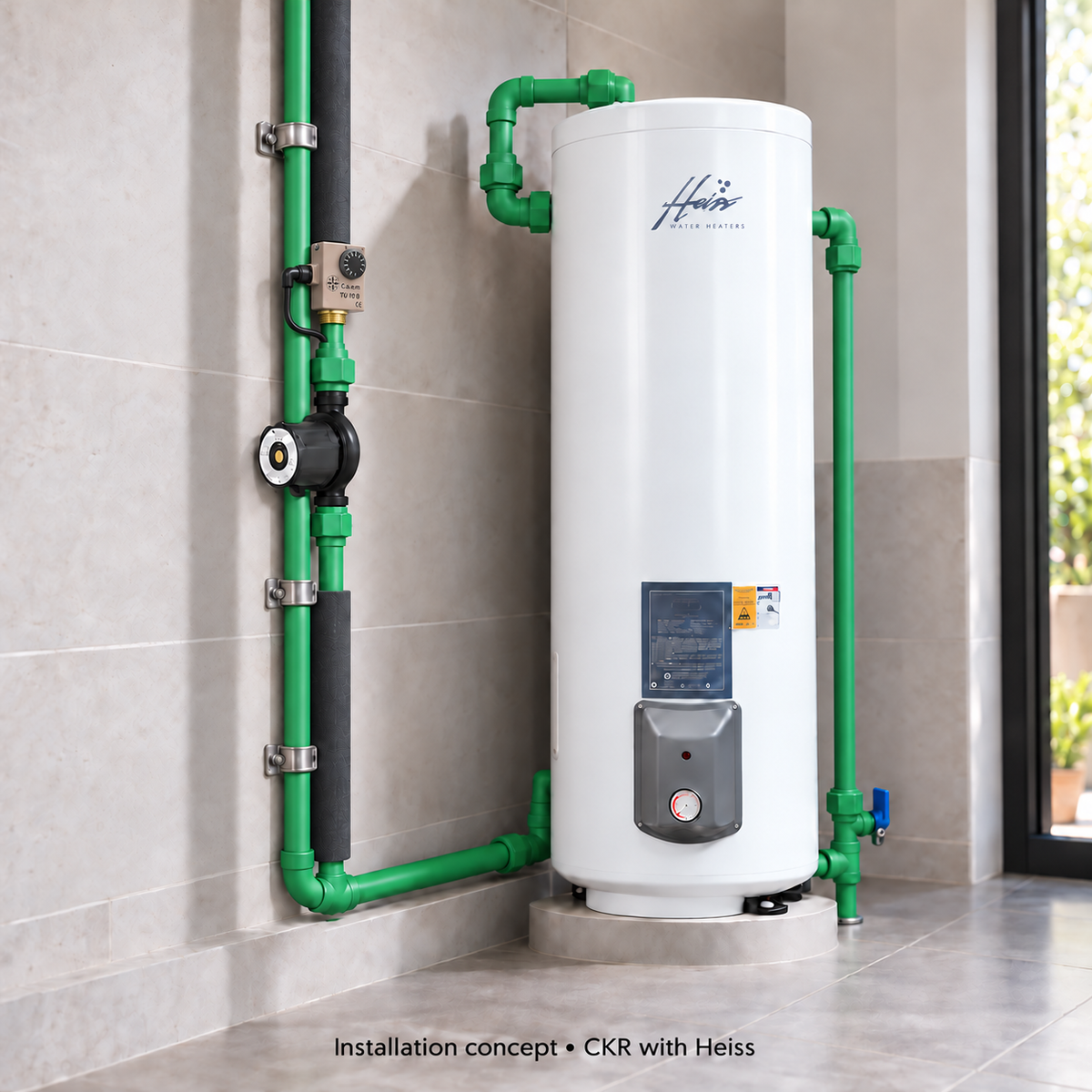

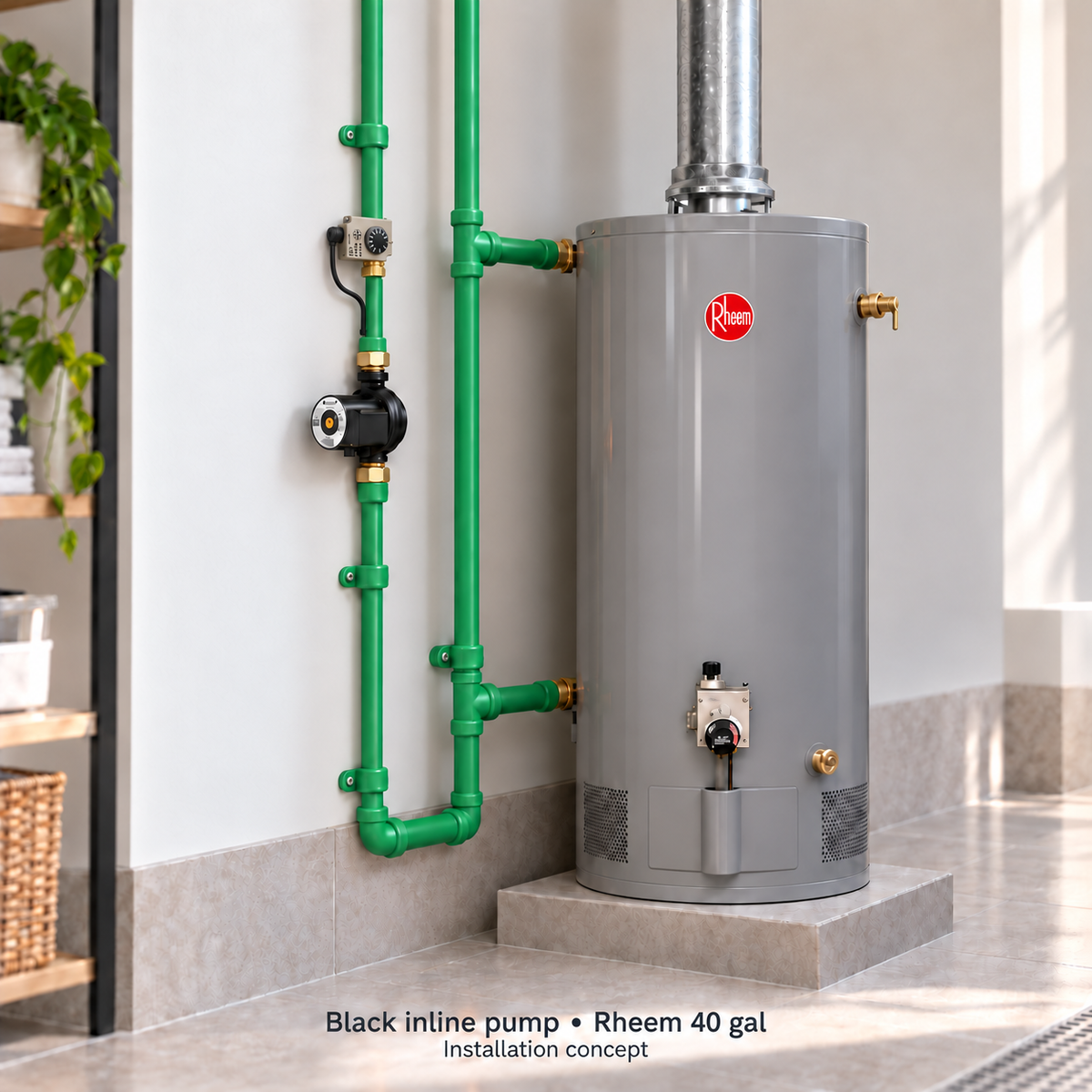

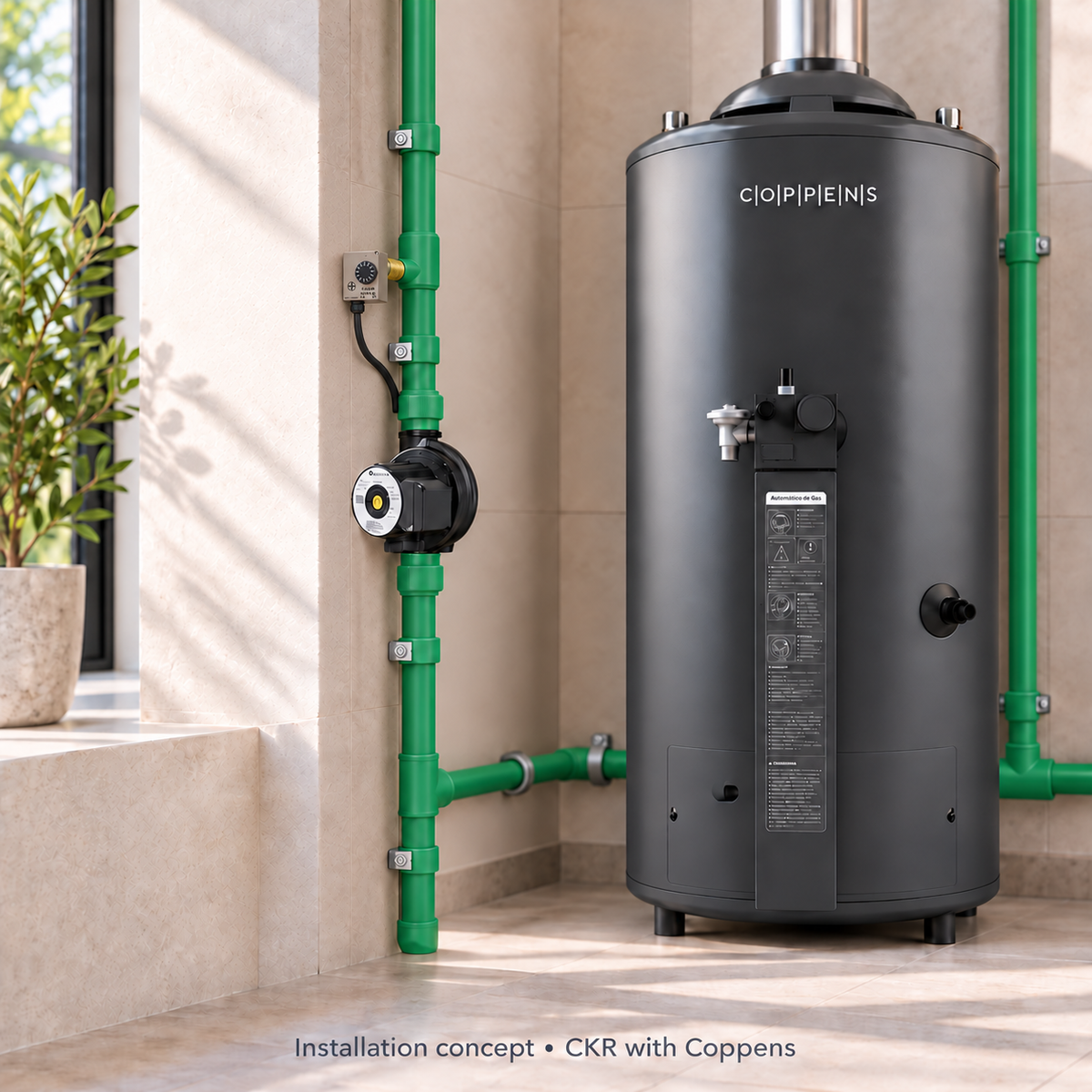

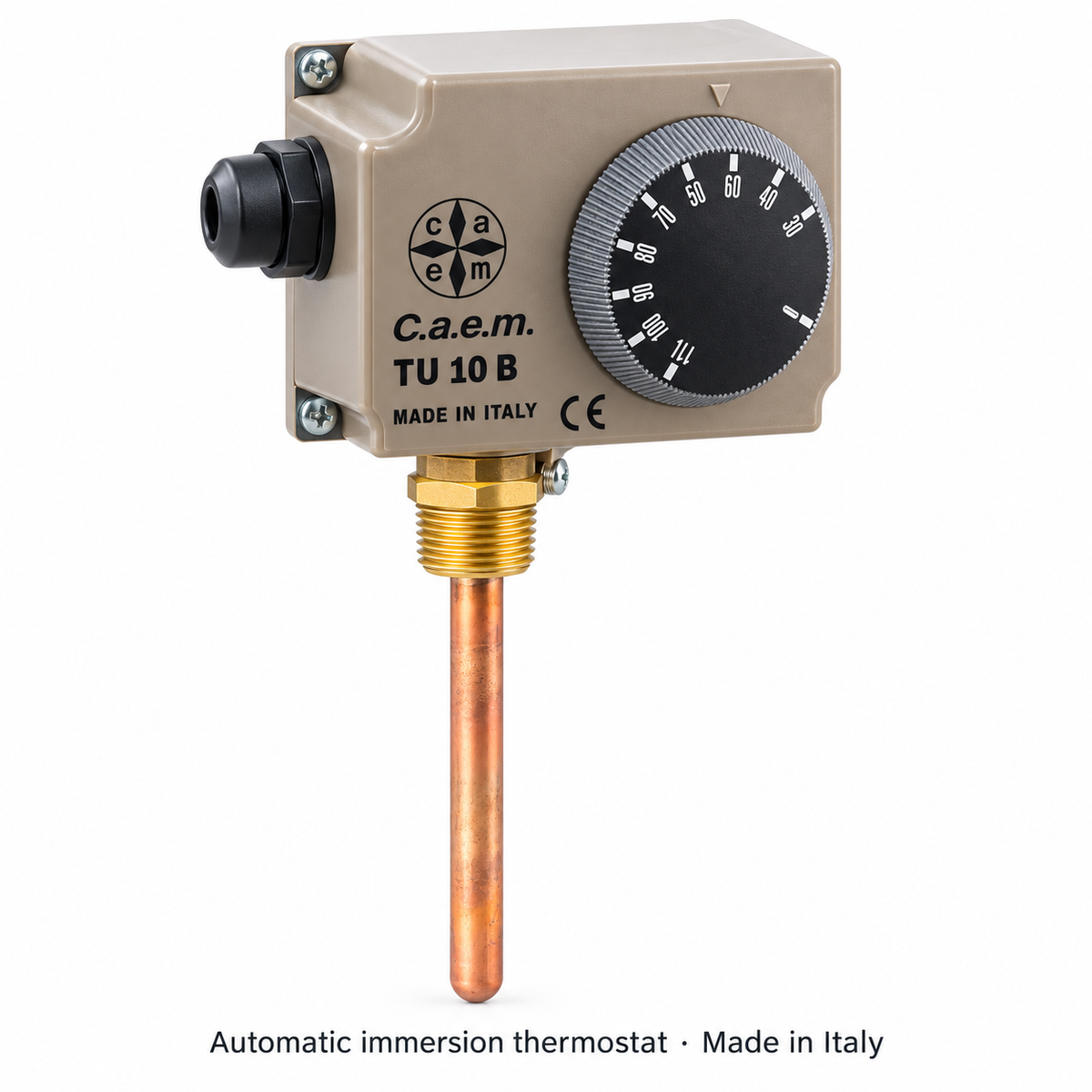

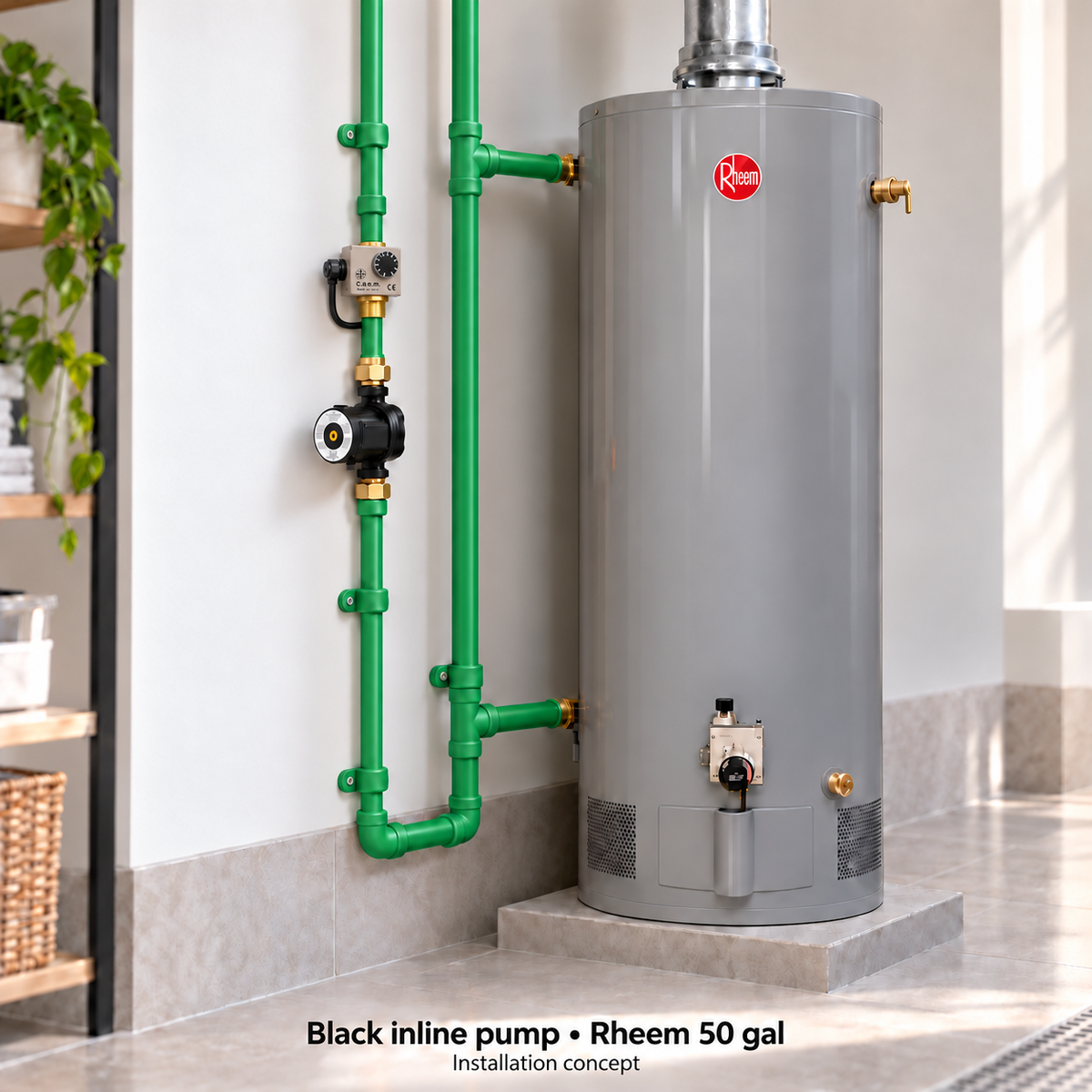

The supplied automatic thermostat is the C.a.e.m. TU 10 B, Made in Italy, with an adjustable temperature range of 30–110°C shown on its product label. The gallery shows the actual thermostat and updated installation concepts for the black CKR pump.
Designed to circulate warm liquid around a suitable closed-loop system. Its inline arrangement fits into the pipe run, while three selectable speeds help an installer match circulation to the system.
- Wet-rotor design; three speed settings.
- Clean, non-aggressive liquids without abrasive particles; up to 30% glycol.
- Manufacturer operating range: 5–110°C liquid temperature; ambient up to 35°C.
- Anti-corrosion-treated cast-iron body, stainless-steel rotor sleeve and technopolymer impeller.
- Continuous duty and IP44 protection.
Please confirm the exact CKR model code, pipe connections and installation spacing before ordering. Product photos illustrate the series; details may vary by model.

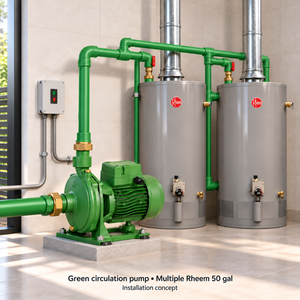

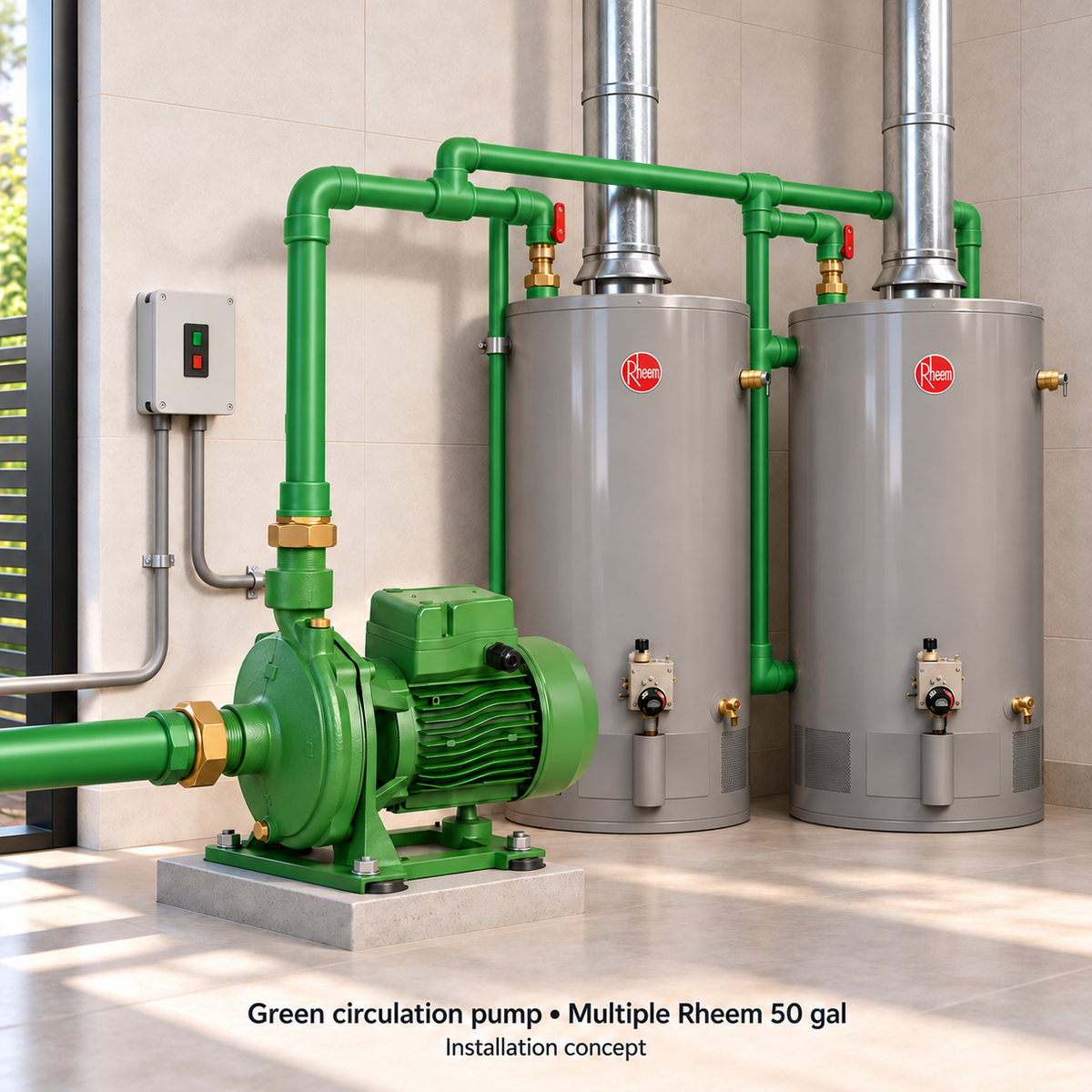

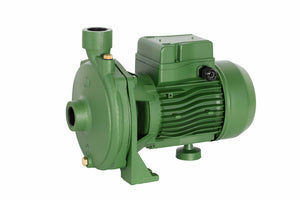

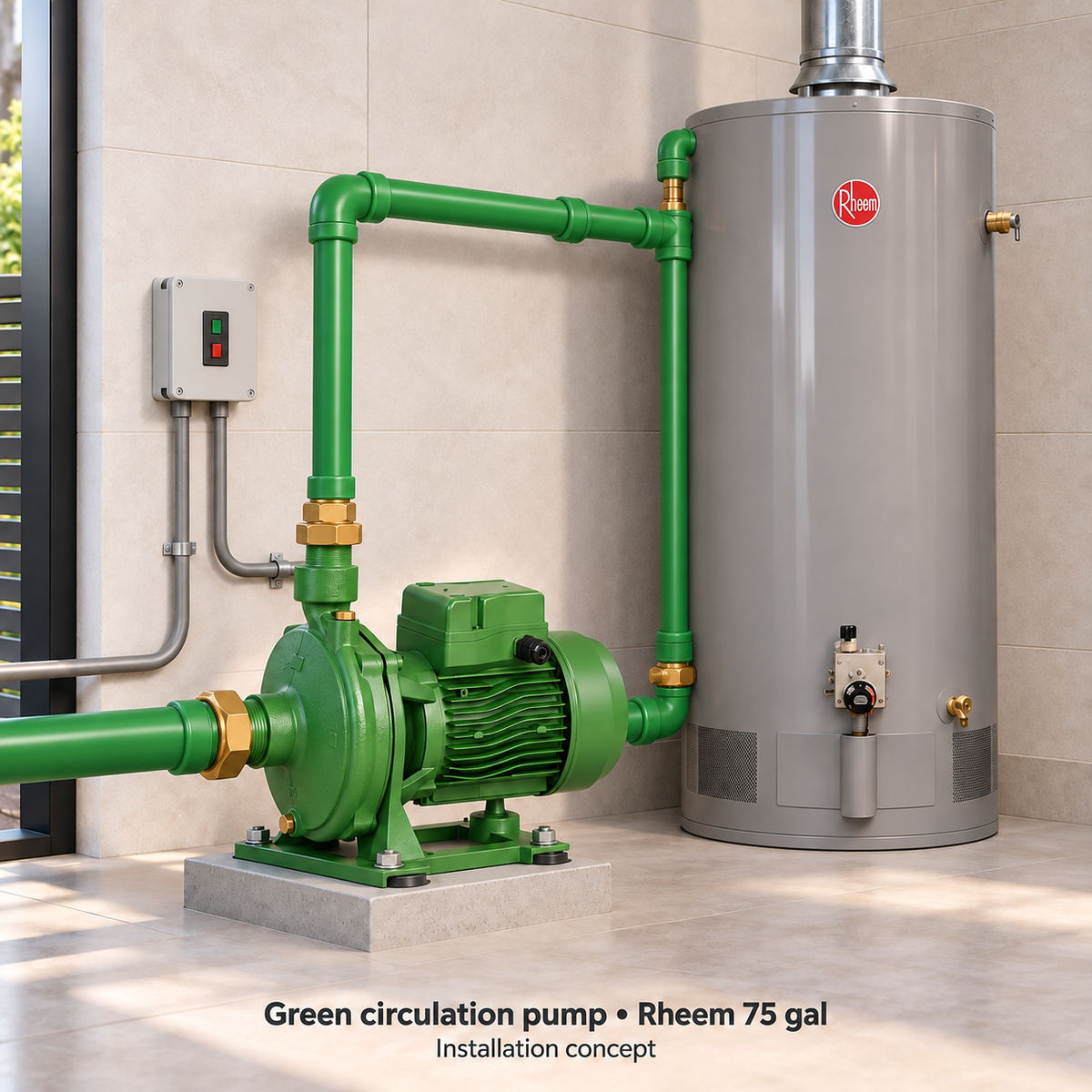

Green KX101M — 1 HP
A single-impeller centrifugal pump for clean water. Use it where the required duty matches its performance curve; it is a different pump type from the CKR inline series.
- Single-phase 230 V supply; built-in motor protection.
- Cast-iron body, stainless-steel impeller and shaft, carbon–ceramic seal.
- Continuous duty; IP44 motor protection and IP54 terminal-box protection.
- Manufacturer liquid-temperature limit: 35°C for domestic use, or 90°C for other permitted applications; ambient up to 40°C.
Before you order
Send us your existing pump code, pipe size and intended use. Our team can help check the required flow and head before you choose. These circulation pumps do not heat the water themselves. Installation must follow the supplied manual and the suitability of the full system, including materials in contact with drinking water.
Prices include delivery and 14% VAT. Thermostat and control-panel inclusions are supplied by AACO.
| Horse Power |
0.5 HP, 1 HP |
|---|
