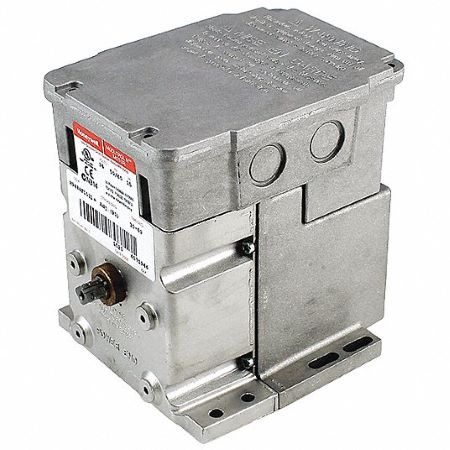

Honeywell M9484F1031 Modutrol IV Motor Regulator
Honeywell M9484F1031 Modutrol IV proportional motor regulator, 24 V AC, with adjustable stroke and two auxiliary switches. Only 1 available.
Honeywell M9484F1031 Modutrol IV Motor Regulator
Honeywell M9484F1031 Modutrol IV Motor Regulator
Honeywell M9484F1031 Modutrol IV proportional motor regulator. Made in Germany.

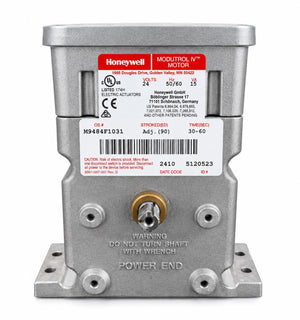

Technical details from the supplied product labels:
Model: M9484F1031
Supply: 24 V AC, 50/60 Hz
Power rating: 15 VA
Torque: 150 lb-in
Adjustable stroke: 90–160 degrees
Operating time: 30–60 seconds
Auxiliary switches: two
Use the exact model number to confirm compatibility with your equipment.
Installation reference images

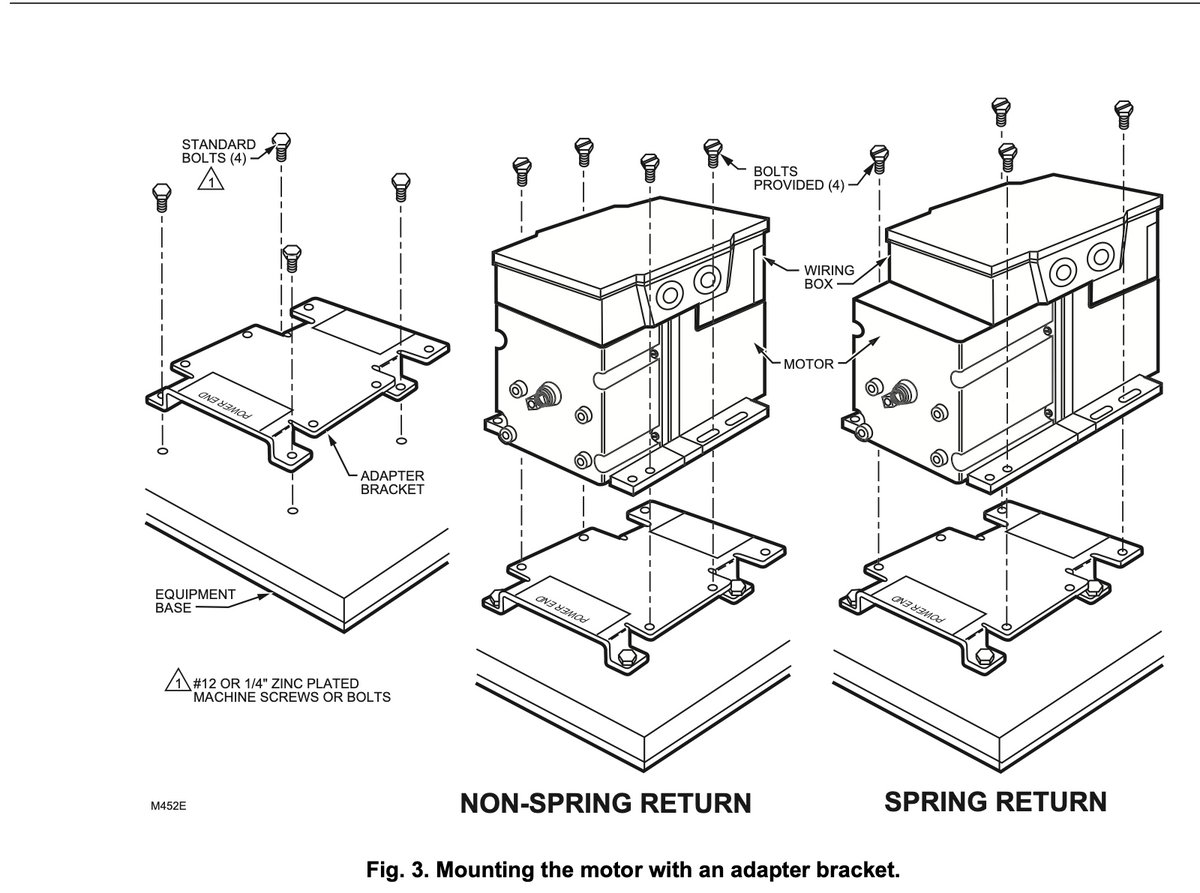

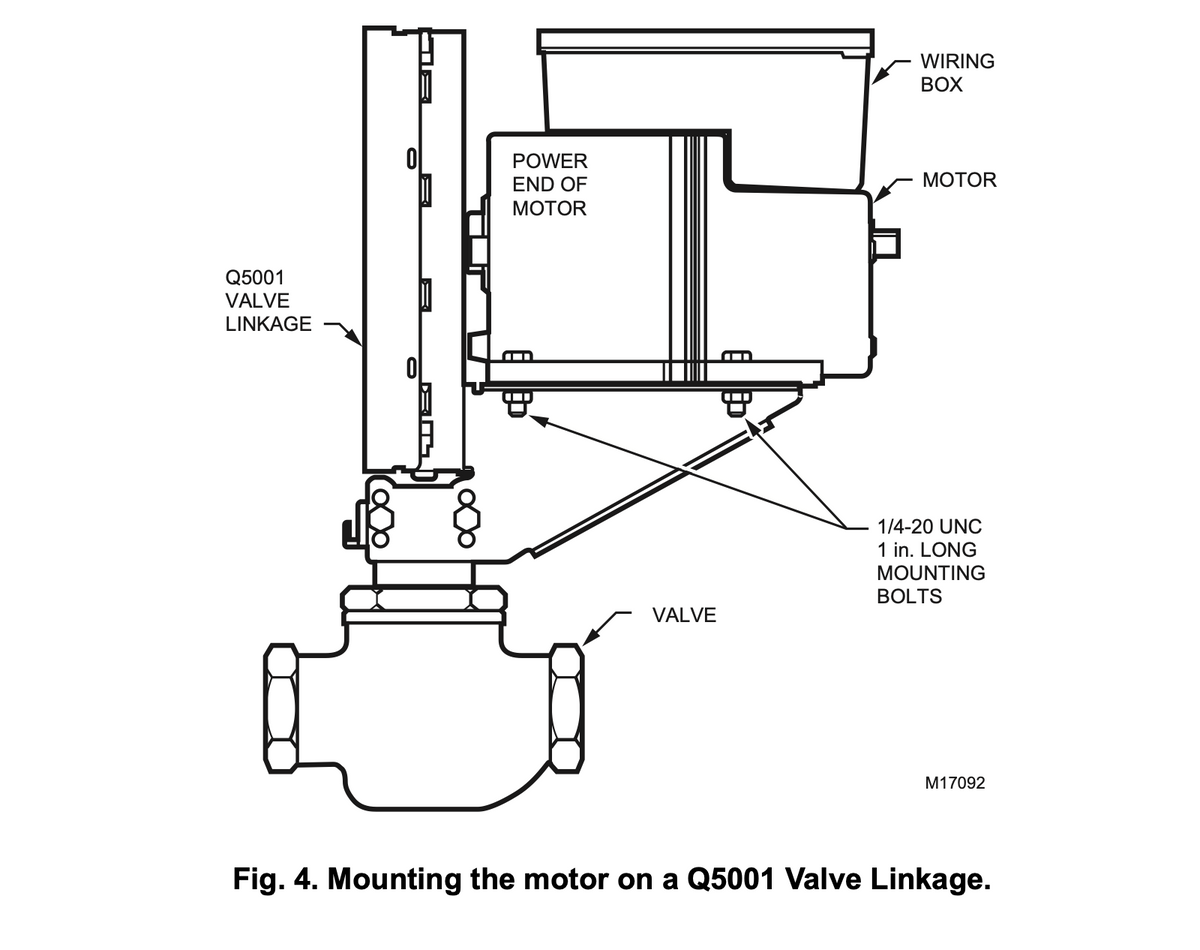

The gallery includes Honeywell Series 90 installation diagrams showing adapter-bracket mounting and a Q5001 valve-linkage example. These are reference diagrams for the motor family. Brackets and linkages shown are separate accessories; confirm the correct arrangement for your equipment.
